01. Acquisition operators

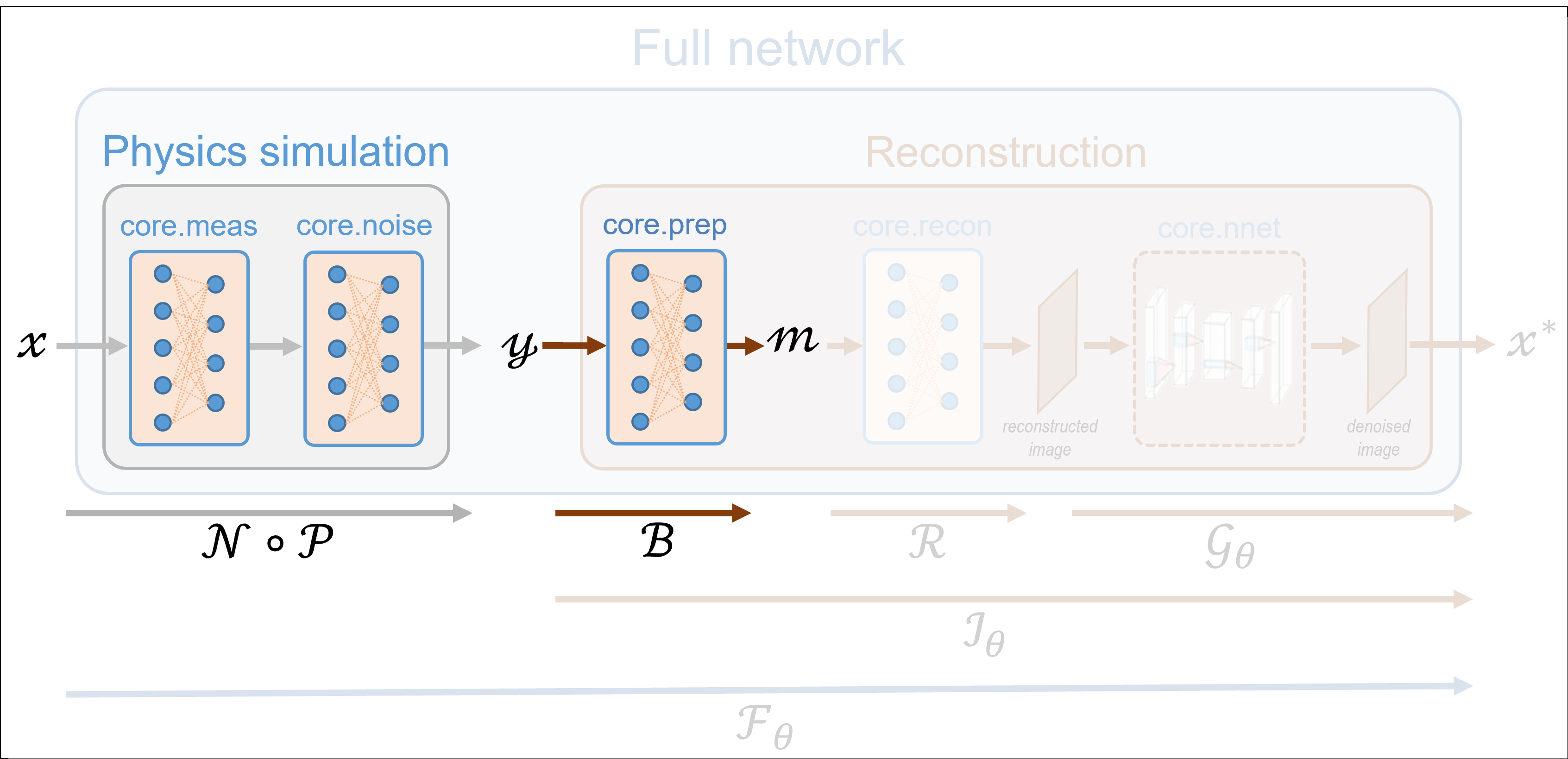

This tutorial shows how to simulate measurements using the spyrit.core submodule. The simulation is based on three modules:

1. Measurement operators compute linear measurements \(y = Hx\) from images \(x\), where \(H\) is a linear operator (matrix) and \(x\) is a vectorized image (see spyrit.core.meas)

2. Noise operator corrupts measurements \(y\) with noise (see spyrit.core.noise)

3. Preprocessing operators are typically used to process the noisy measurements prior to reconstruction (see spyrit.core.prep)

These tutorials load image samples from /images/.

Load a batch of images

Images \(x\) for training neural networks expect values in [-1,1]. The images are normalized using the transform_gray_norm() function.

import os

import torch
import torchvision
import matplotlib.pyplot as plt

from spyrit.misc.disp import imagesc
from spyrit.misc.statistics import transform_gray_norm

# sphinx_gallery_thumbnail_path = 'fig/tuto1.png'

h = 64  # image size hxh
i = 1  # Image index (modify to change the image)
spyritPath = os.getcwd()
imgs_path = os.path.join(spyritPath, "images/")


# Create a transform for natural images to normalized grayscale image tensors
transform = transform_gray_norm(img_size=h)

# Create dataset and loader (expects class folder 'images/test/')
dataset = torchvision.datasets.ImageFolder(root=imgs_path, transform=transform)
dataloader = torch.utils.data.DataLoader(dataset, batch_size=7)

x, _ = next(iter(dataloader))
print(f"Shape of input images: {x.shape}")

# Select image
x = x[i : i + 1, :, :, :]
x = x.detach().clone()
b, c, h, w = x.shape

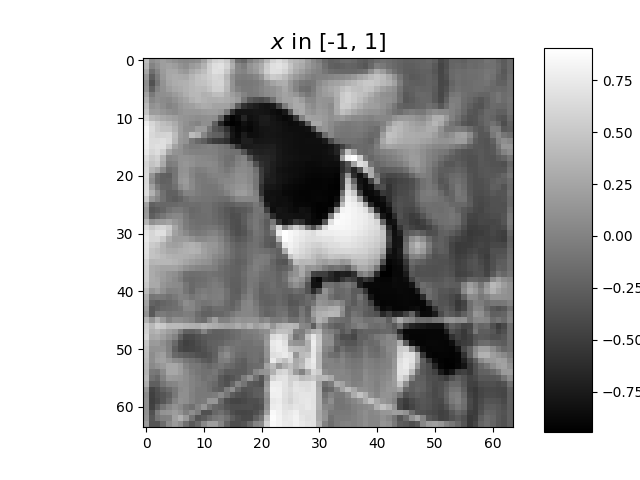

# plot
x_plot = x.view(-1, h, h).cpu().numpy()
imagesc(x_plot[0, :, :], r"$x$ in [-1, 1]")

Shape of input images: torch.Size([7, 1, 64, 64])

The measurement and noise operators

Noise operators are defined in the noise module. A noise operator computes the following three steps sequentially:

1. Normalization of the image \(x\) with values in [-1,1] to get an image \(\tilde{x}=\frac{x+1}{2}\) in [0,1], as it is required for measurement simulation

2. Application of the measurement model, i.e., computation of \(H\tilde{x}\)

3. Application of the noise model

\[y \sim \texttt{Noise}(H\tilde{x}) = \texttt{Noise}\left(\frac{H(x+1)}{2}\right),\]

The normalization is usefull when considering distributions such as the Poisson distribution that are defined on positive values.

Note

The noise operator is constructed from a measurement operator (see the meas submodule) in order to compute the measurements \(H\tilde{x}\), as given by step #2.

A simple example: identity measurement matrix and no noise

\[y = \tilde{x}\]

We start with a simple example where the measurement matrix \(H\) is the identity, which can be handled by the more general spyrit.core.meas.Linear class. We consider the noiseless case handled by the spyrit.core.noise.NoNoise class.

from spyrit.core.meas import Linear
from spyrit.core.noise import NoNoise

meas_op = Linear(torch.eye(h * h))
noise_op = NoNoise(meas_op)

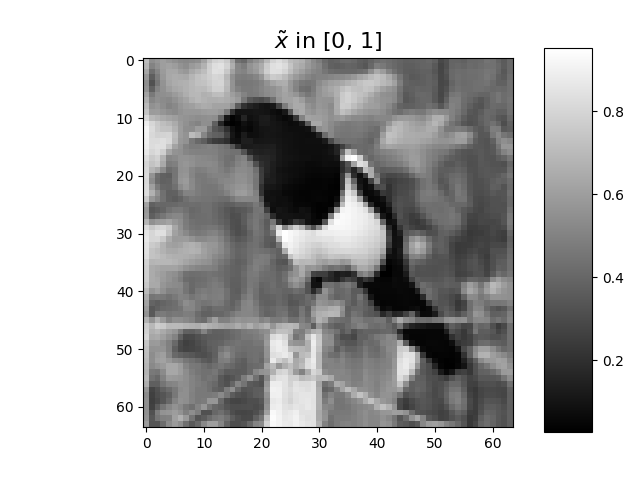

We simulate the measurement vector \(y\) that we visualise as an image. Remember that the input image \(x\) is handled as a vector.

x = x.view(b * c, h * w)  # vectorized image
print(f"Shape of vectorized image: {x.shape}")
y_eye = noise_op(x)  # noisy measurement vector
print(f"Shape of simulated measurements y: {y_eye.shape}")

# plot
x_plot = y_eye.view(-1, h, h).cpu().numpy()
imagesc(x_plot[0, :, :], r"$\tilde{x}$ in [0, 1]")

Shape of vectorized image: torch.Size([1, 4096])
Shape of simulated measurements y: torch.Size([1, 4096])

Note

Note that the image identical to the original one, except it has been normalized in [0,1].

Same example with Poisson noise

We now consider Poisson noise, i.e., a noisy measurement vector given by

\[y \sim \mathcal{P}(\alpha H \tilde{x}),\]

where \(\alpha\) is a scalar value that represents the maximum image intensity (in photons). The larger \(\alpha\), the higher the signal-to-noise ratio.

We consider the spyrit.core.noise.Poisson class and set \(\alpha\) to 100 photons.

from spyrit.core.noise import Poisson
from spyrit.misc.disp import add_colorbar, noaxis

alpha = 100  # number of photons
noise_op = Poisson(meas_op, alpha)

We simulate two noisy measurement vectors

y1 = noise_op(x)  # a noisy measurement vector
y2 = noise_op(x)  # another noisy measurement vector

We now consider the case \(\alpha = 1000\) photons.

noise_op.alpha = 1000
y3 = noise_op(x)  # noisy measurement vector

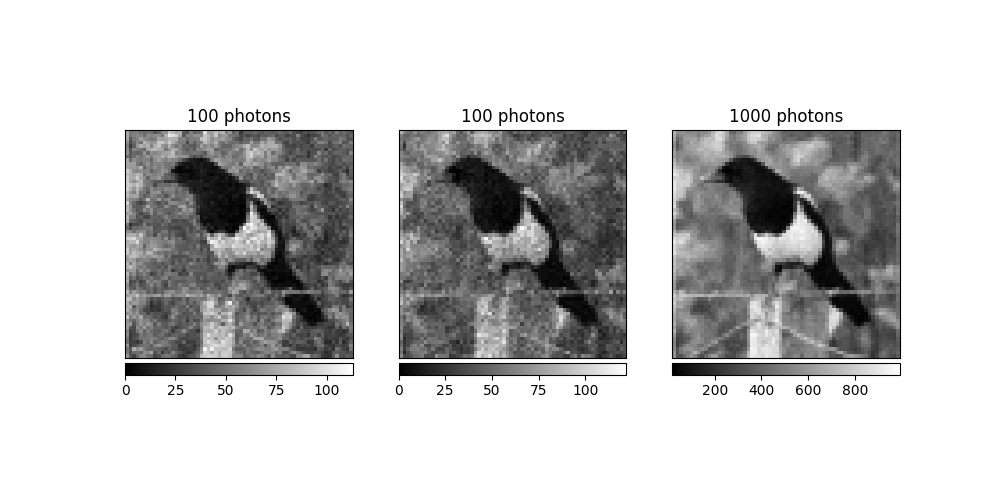

We finally plot the measurement vectors as images

# plot
y1_plot = y1.view(b, h, h).detach().numpy()
y2_plot = y2.view(b, h, h).detach().numpy()
y3_plot = y3.view(b, h, h).detach().numpy()

f, axs = plt.subplots(1, 3, figsize=(10, 5))
axs[0].set_title("100 photons")
im = axs[0].imshow(y1_plot[0, :, :], cmap="gray")
add_colorbar(im, "bottom")

axs[1].set_title("100 photons")
im = axs[1].imshow(y2_plot[0, :, :], cmap="gray")
add_colorbar(im, "bottom")

axs[2].set_title("1000 photons")
im = axs[2].imshow(y3_plot[0, :, :], cmap="gray")
add_colorbar(im, "bottom")

noaxis(axs)

As expected the signal-to-noise ratio of the measurement vector is higher for 1,000 photons than for 100 photons

Note

Not only the signal-to-noise, but also the scale of the measurements depends on \(\alpha\), which motivate the introduction of the preprocessing operator.

The preprocessing operator

Preprocessing operators are defined in the spyrit.core.prep module. A preprocessing operator applies to the noisy measurements

\[m = \texttt{Prep}(y),\]

For instance, a preprocessing operator can be used to compensate for the scaling factors that appear in the measurement or noise operators. In this case, a preprocessing operator is closely linked to its measurement and/or noise operator counterpart. While scaling factors are required to simulate realistic measurements, they are not required for reconstruction.

Preprocessing measurements corrupted by Poisson noise

We consider the spyrit.core.prep.DirectPoisson class that intends to “undo” the spyrit.core.noise.Poisson class by compensating for:

• the scaling that appears when computing Poisson-corrupted measurements

• the affine transformation to get images in [0,1] from images in [-1,1]

For this, it computes

\[m = \frac{2}{\alpha} y - H1\]

We consider the spyrit.core.prep.DirectPoisson class and set \(\alpha\) to 100 photons.

from spyrit.core.prep import DirectPoisson

alpha = 100  # number of photons
prep_op = DirectPoisson(alpha, meas_op)

We preprocess the first two noisy measurement vectors

m1 = prep_op(y1)
m2 = prep_op(y2)

We now consider the case \(\alpha = 1000\) photons to preprocess the third measurement vector

prep_op.alpha = 1000
m3 = prep_op(y3)

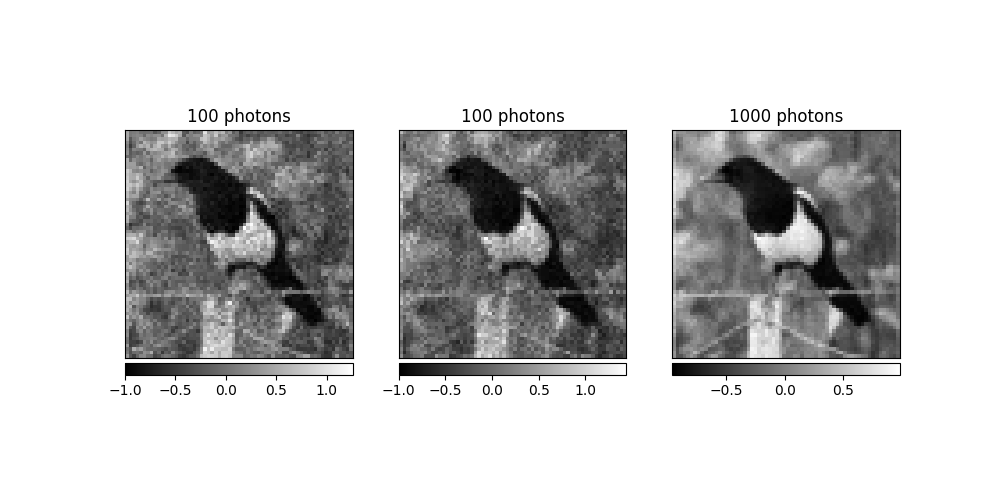

We finally plot the preprocessed measurement vectors as images

# plot
m1 = m1.view(b, h, h).detach().numpy()
m2 = m2.view(b, h, h).detach().numpy()
m3 = m3.view(b, h, h).detach().numpy()

f, axs = plt.subplots(1, 3, figsize=(10, 5))
axs[0].set_title("100 photons")
im = axs[0].imshow(m1[0, :, :], cmap="gray")
add_colorbar(im, "bottom")

axs[1].set_title("100 photons")
im = axs[1].imshow(m2[0, :, :], cmap="gray")
add_colorbar(im, "bottom")

axs[2].set_title("1000 photons")
im = axs[2].imshow(m3[0, :, :], cmap="gray")
add_colorbar(im, "bottom")

noaxis(axs)

Note

The preprocessed measurements still have different the signal-to-noise ratios depending on \(\alpha\); however, they (approximately) all lie within the same range (here, [-1, 1]).

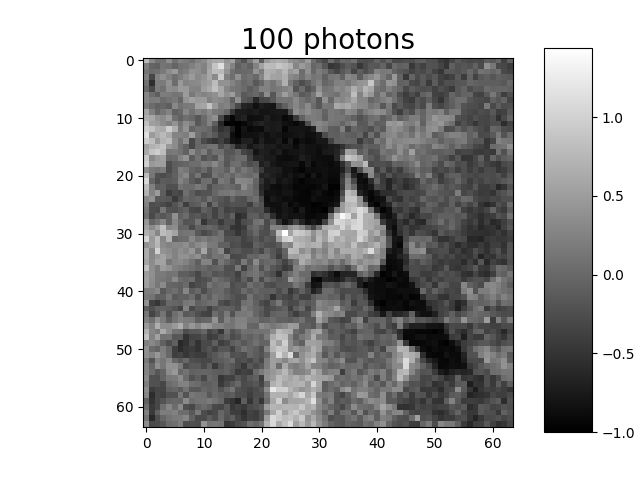

We show again one of the preprocessed measurement vectors (tutorial thumbnail purpose)

# Plot
imagesc(m2[0, :, :], "100 photons", title_fontsize=20)
